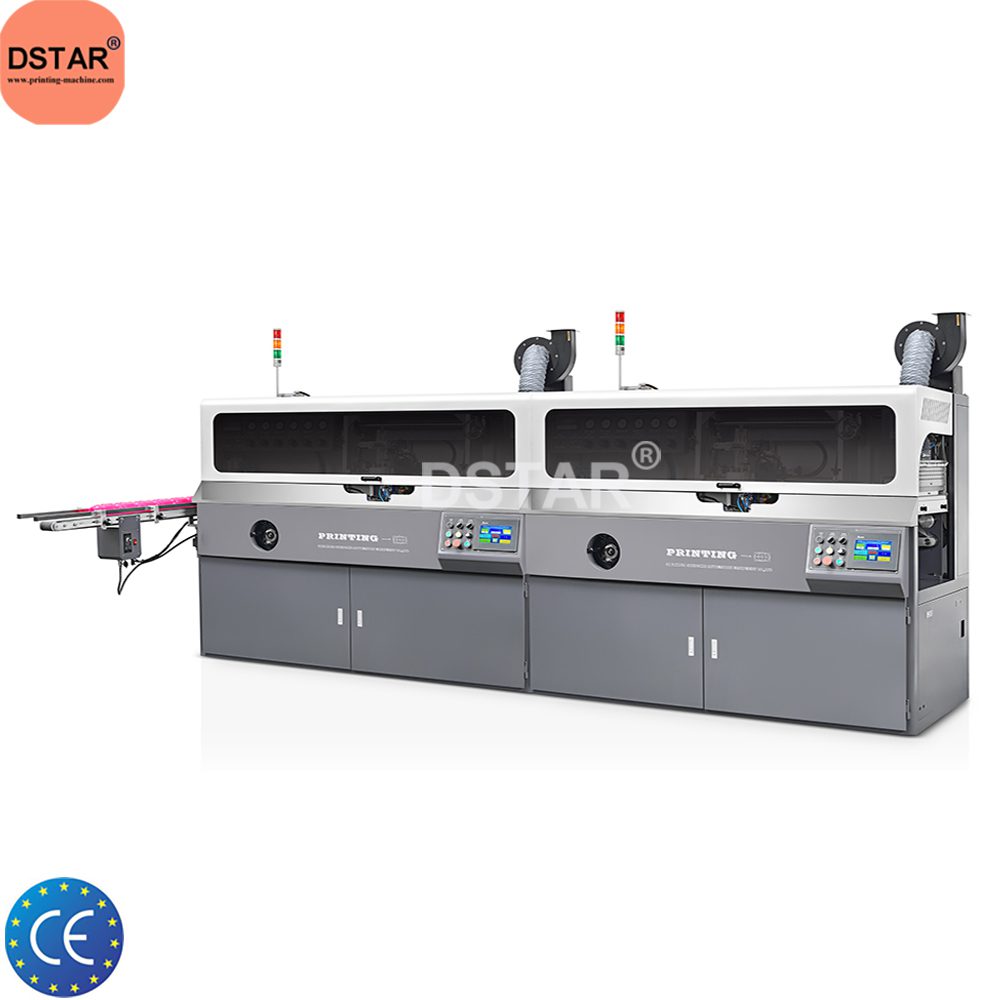

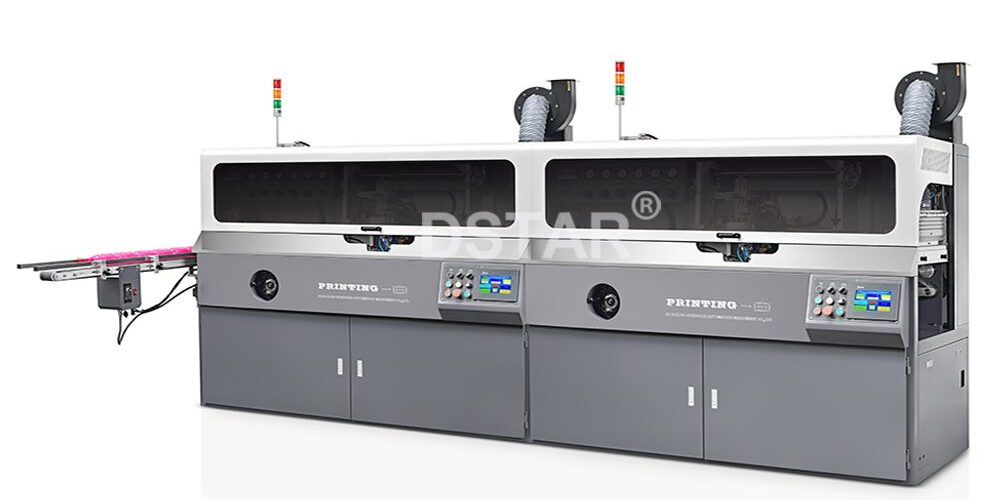

Bottle screen printing machine
Product:bottle screen printing machine
Brand:DSTAR
Model:DX-S102
Printing color:2 color
Application:bottle/cup/can printing
Technical Parameters
Product:automatic bottle printing machine
Brand:DSTAR
Model:DX-S102
Printing color:2 color
Printing size:
Cylinder bottle ¢20-100mm Height 25-300mm
Oval bottle W25-120mm Height 25-300mm
Printing speed:cylinder 3,600pcs/hr oval 4,200pcs/hr
Voltage:AC380V 3Phase
Power:Machine(1.5KW) UV(5KW)
Air supply:0.6Mpa
Gas:0.15Mpa
Machine size:L200*W100*H150cm
N.W:1000KGS

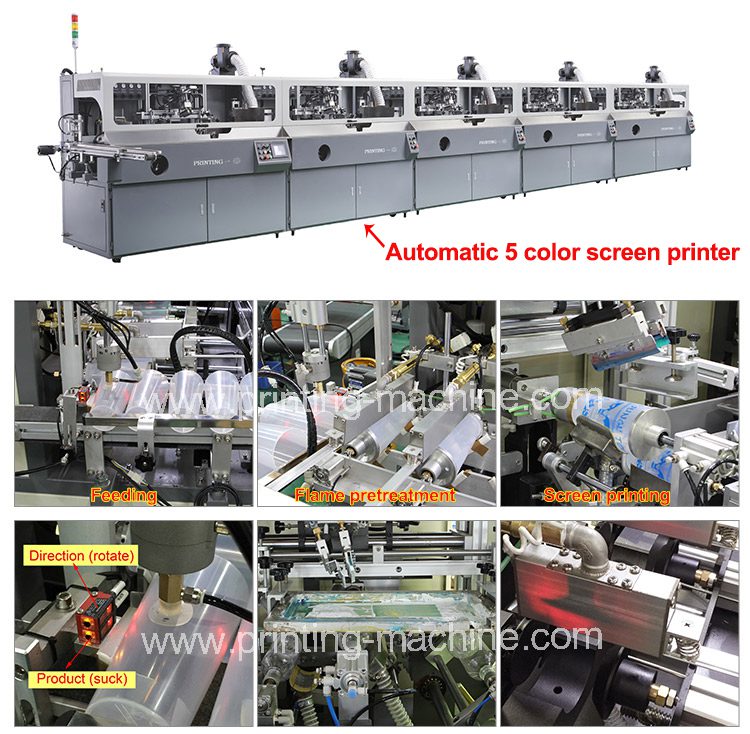

Machine features
- Automatic bottle feeding (optional proposal with bottle sorting machine)
- Automatic pick up bottle to machine by sucker
- Pretreatment on bottle surface with flame
- Screen printing and UV curing
- Automatic unloading printed bottles.
Applications
This printing machine is a multi-function single-color or multi-color screen printing machine, which is suitable for printing on the surface of cylindrical, oval and flat products. For examples:
- baby feeding bottles printing
- beverage bottles print
- medicine bottles printing
- cosmetic packaging bottles
- oil bottles print
- silicone sealant glue tub
Printing samples
Printing supplies
- Screeen printing squeegee
- Screen printing stencil (also named printing plate)
- Printing ink and ink solvent
- Bottle fixture
