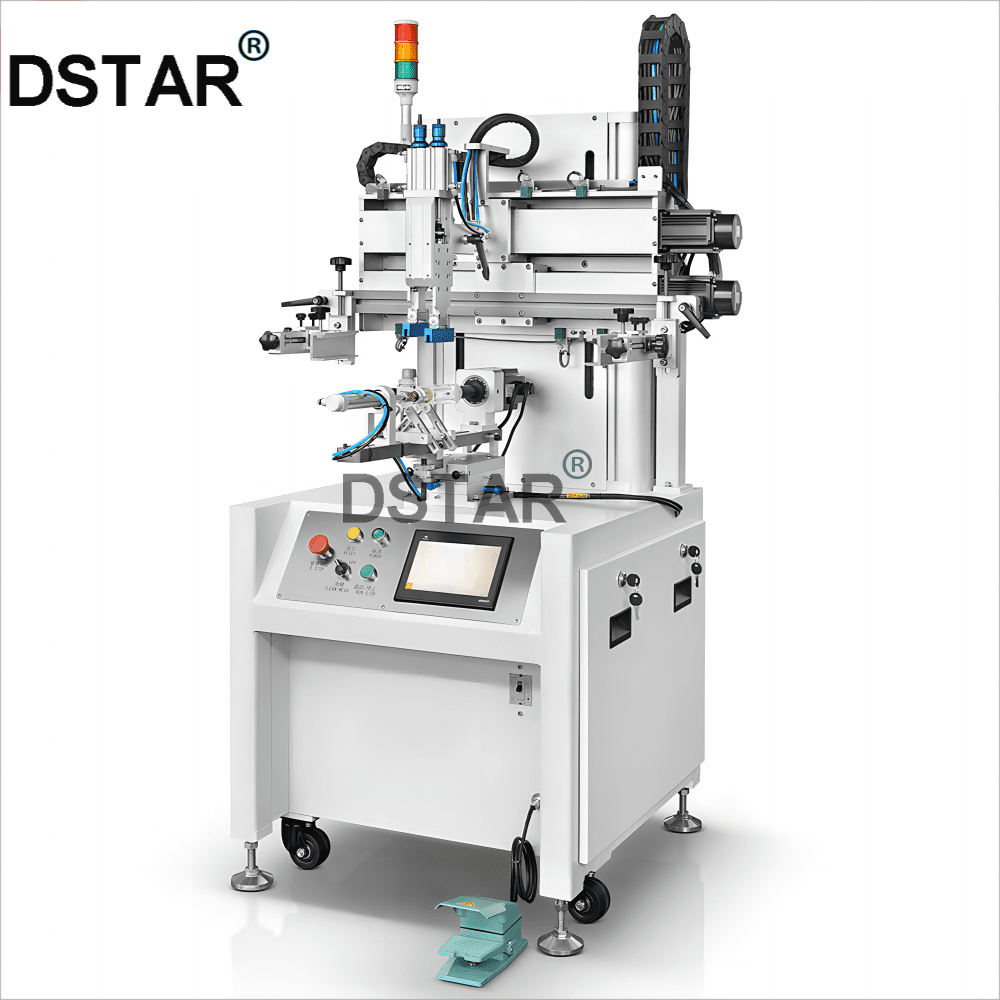

Round and flat bottle servo screen printing machine multicolor printing machine

Product name:	Round and flat bottle servo screen printing machine multicolor printing machine
Model:	DX-SP400
Printing color:	1 color or color processing
Machine size	L70W82H172cm
Max printing area:	380*120mm
Product size:	round bottle ¢16-¢120mm Height 180mm
Product size:	square bottle: perimeter 350mm Height 180mm
Product size:	oval bottle: perimeter 360mm Height 180mm
Screen printing speed:	Square bottle(double sides) 20-25 pcs/min
Screen printing speed:	Oval bottle(double sides) 20-25pcs/min
Screen printing speed:	Voltage:AC220V/3.5KW

machine specifications

Machine features

The machine whole driven by servo motor
PLC control system
Multi-language settings (you can choose to import the required languages), such as English, French, German, Spanish, Estonian, Polish, and so on.
HMI Touch screen for convenient parameters setting
4-axis servo: screen plate right and left servo, printing left and right servo, fixture rotary servo, screen plate up and down servo(make the movement more easy and get a high accuracy)
Flexible printing application for round/square/oval bottles.Such as polish bottles, perfume bottles, cream bottles, and so on
Footswitch control

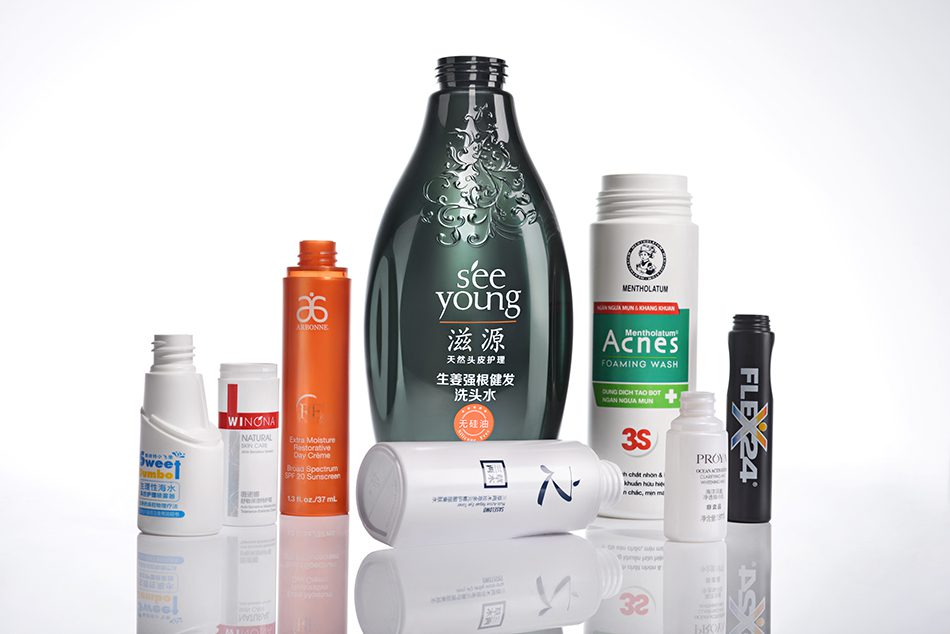

1.Cosmetic bottles print(perfume bottle,cream bottle,lipstip tube,polish bottle,shampoo bottle and so on)
Drinking bottle print
Medical bottles（ampolue bottle,syringe）
