Product:Round Bottle Hot Foil Printing Machine
Model: DX-HS300
Heat panel size:200*300mm
Heat temperature:0-400°C
Maximum printing diameter:¢95mm
Maximum printing perimeter:300mm
Max artwork printing wdith:150mm
Printing speed: about 20 pcs/Min
N.W:200KGS
Voltage:AC220V/2KW
Machine size: L650*W550*H1600mm

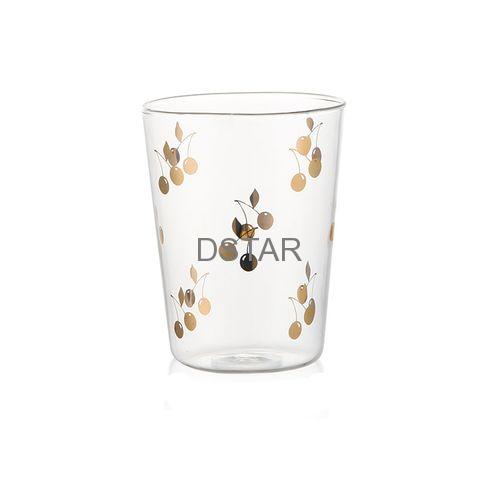

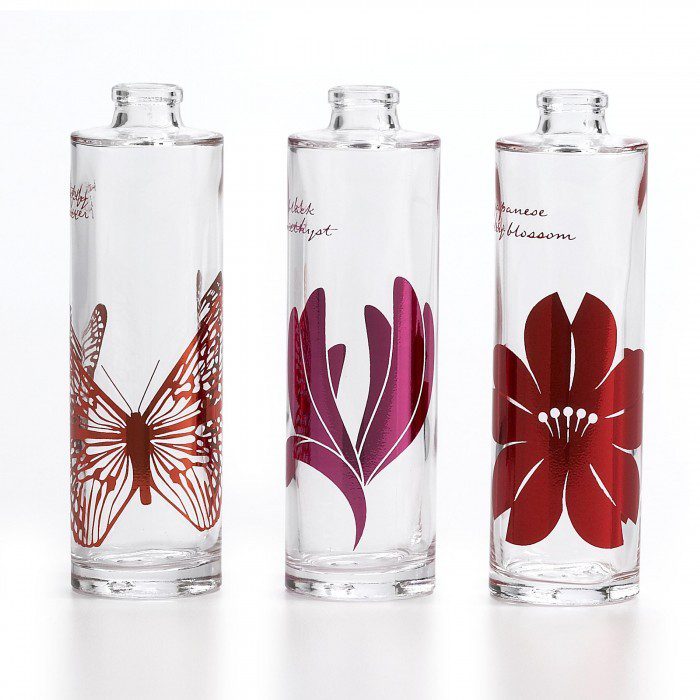

Hot stamping samples
What is hot stamping machine?
In a hot stamping machine, a die is mounted and heated, with the product to be stamped placed beneath it.
A metalized or painted roll-leaf carrier is inserted between the two, and the die presses down through it. The dry paint or foil used is impressed with the surface of the product.
The dye-stamping process itself is non-polluting because the materials involved are dry.
Pressure and heat cause the relevant sections of the foil to become detached from the carrier material and become bonded with the printing surface
Hot stamping consumables

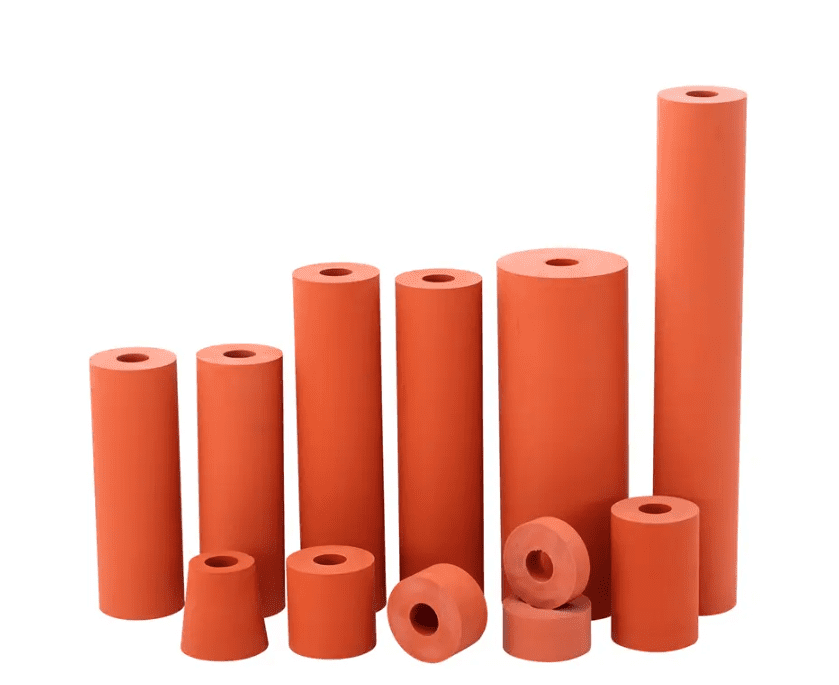

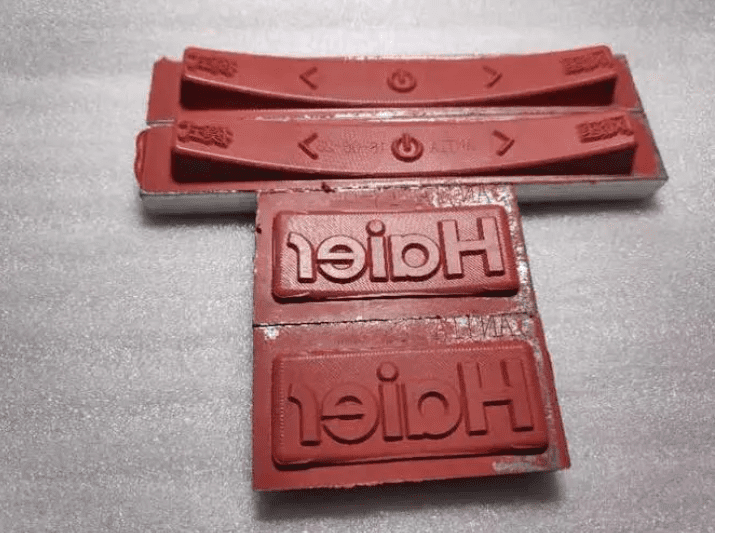

- silicone roller or hot stamping plate

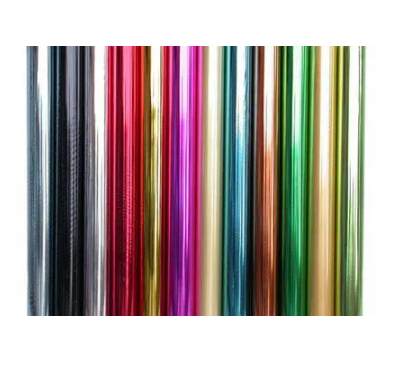

- Hot stamping foil
- bottle fixture(customized as different bottle size and shapes)
Hot stamping machine video
