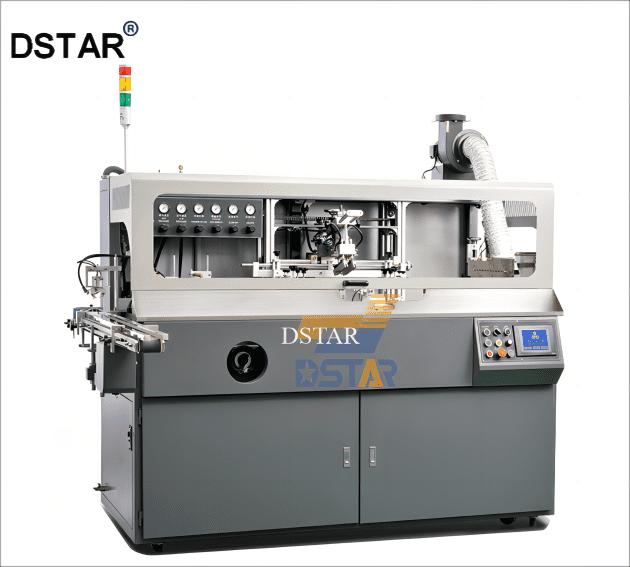

Product: automatic screen printing machine for glass bottle
Model: DX-S101
Printing color color or multi-color
Printing size: Cylinder ¢20-100mm Height 25-300mm, Oval W25-120mm Height 25-300mm
Speed: cylinder 4,000pcs/hr ,oval 5,000pcs/hr
Voltage: AC380V 3Phase
Power:Machine(1.5KW) UV(5KW)
Air supply:0.6Mpa
Gas:0.15Mpa
Machine size: L200*W100*H150cm
N.W:1000KGS
Machine applications
- Cosmetic bottle screen printing
- Medicine bottles screen printing
- Chemical bottle screen printing
- Sealant tube screen printing
- Jerry can screen-printing
- Drinking bottle screen printing
- Filer screen printing
- Tea cup screen printing
Printing samples
Machine features
1.The machine is equipped with an automatic loading system, automatic flame treatment, and UV curing system, as well as an infinitely variable speed control system. It also features a non-printing function when bottles are not present, along with an automatic pre-contraposition system.
2. This versatile machine is widely used for printing on variously shaped domestic, medicine, and food packaging containers, as well as tools. It adopts PLC system and advanced touchscreen technology for smart operation.
3. The entire machine is integrated with advanced motors and pneumatic parts to ensure infinitely variable speeds, automatic position matching, automatic feeding, and non-printing when bottles are absent.
4. It can be utilized for printing on oval, cylindrical, and irregularly shaped bottles made of plastic, glass or metal.
